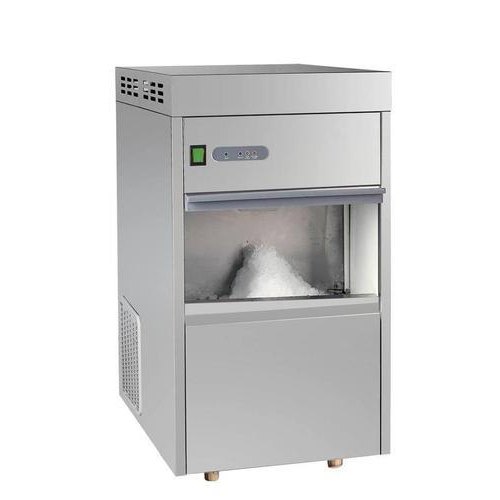

ICE Flaking Machine
An ice flaking machine is a specialized refrigeration device designed to produce thin, flat flakes of ice efficiently and continuously. These ice flakes have a large surface area, allowing for rapid cooling and uniform temperature control. Ice flaking machines are widely used in industries such as food processing, fisheries, supermarkets, concrete cooling, pharmaceuticals, and chemical processing, where fast and gentle cooling is essential. Due to their energy efficiency, hygienic operation, and ability to produce dry, non-clumping ice, ice flaking machines are an ideal solution for both industrial and commercial cooling applications.
- High-quality stainless steel is used for outer body and they are anti corrosive and durable, and the all-in-one independent structure makes them simple and compact and space-saving. Bin Is made of good quality plastic.
- Their boxes are protected with fluorine-free foam thermal cover featuring good insulation effect. Their internal bladders are of fluorine-free bacterial inhibitory-type. They are both energy-saving and environmental friendly.
- High quality and efficient use of fluorine-free R134a compressors, parts and components have passed relevant safety certifications, and they are safe and reliable.
- They have ice full display, water deficiency display, overcooling protection display and malfunction warning display etc. for shutdown protection. The stop automatically in case of ice full or water deficiency and start automatically when power or water supply is resumed.
- The ice made is small shaped, amorphous granular flake chipped ice, which can infiltrate into narrow space, featuring fast cooling speed, good ice bathing effect. It is specially designed for laboratories.
- There are power switch and function indicators deployed in the front with detailed instruction. it is intuitive and easy to use. Various safety performance indicators have passed electrical tests. they are safe and reliable.
| Specifications | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 | Model 6 | Model 7 | Model 8 | Model 9 | Model 10 | Model 11 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ice Making Capacity (kg) | 20 | 30 | 50 | 70 | 85 | 100 | 120 | 150 | 200 | 250 | 300 |
| Ice Storage Capacity (kg) | 10 | 10 | 15 | 25 | 25 | 40 | 40 | 40 | 60 | 60 | 150 / 280* |
| Input Power (W) | 180 | 380 | 460 | 480 | 520 | 550 | 680 | 805 | 1370 | 1360 | — |
| Ambient Temperature | 10–25°C | ||||||||||
| Water Temperature | 10°C | ||||||||||
| Power Supply | AC 220V ±10%, 50/60Hz; 110V ±10%, 60Hz | ||||||||||
| Refrigeration Type | Air Cooling | ||||||||||
| Tank Shell | Plastic | ||||||||||
| Compressor / Refrigerant | CFC-Free / R134a | ||||||||||
| Standard Accessories | Water Inlet Pipe × 1, Drainage Pipe × 1, Ice Spoon × 1 | ||||||||||
| Optional Accessories | Filter (Water pressure needs to be within 1.5–3 kg/cm²) | ||||||||||
