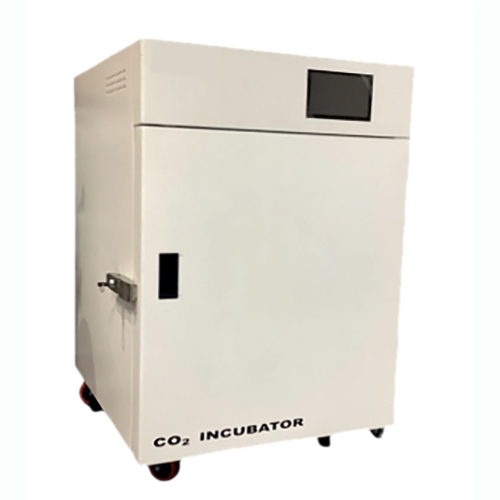

CO2 INCUBATOR
THYMOL’S CO2 Incubators are widely used in scientific research to grow & maintain microbiological cell cultures. The CO2 Incubator maintains optimal Temperature, Humidity & other Physiological conditions such as carbon dioxide & oxygen content of the atmosphere which is essential for cell. The unit features accurate CO2 control, uniform temperature distribution, and contamination resistant construction, making it ideal for advanced biological research
Key Features
- Accurate Temperature Control: Maintains stable temperature (typically 37°C) for ideal cell growth.
- CO2 Regulation System: Ensures precise CO2 levels (commonly 5%) for proper pH balance in culture media.
- High Humidity Environment: Prevents sample dehydration with up to 95% humidity.
- Contamination Control: HEPA filtration system Antimicrobial interior (stainless steel or copper)
- Digital Control Panel: User-friendly interface for monitoring and adjustments.
- Alarm & Safety Features: Alerts for temperature or gas deviations.
- Water tank for humidity in the chamber.
- Equipped with USB port and LCD touch screen, the incubator can save data in real time.
- High quality CO2 gas filter ensure the inside gas quality.
- High quality infrared sensor for accurate CO2 Concentration.
- The working chamber adopts round angle structure, easy to clean.
Technical Specifications
| Model | TAI-CO2-A90 | TAI-CO2-A180 |
|---|---|---|
| Capacity | 90 Liter | 180 Liter |
| Heating | Air Jacket / Water jacket | Air jacket/Water jacket |
| Temp. range | RT +5-60°C | |
| Control Type | Microcomputer controller/ LCD Touch Display | |
| Temp. Fluctuation | < +0.2 (at 37°C) | |
| Temp. Uniformity | < +0.3 (at 37°C) | |
| Time Setting | 999h or continuous | |
| Alarm | Audible and visual alarm: Over temperature alarm: CO2 Concentration alarm | |
| Shelves | 2 pcs/ adjustable | |
| Material | External cold rolled Steel with painting: Internal stainless steel | |
| Door | with inner door and external door | |
| CO₂ Range | infrared sensor range 0-20% | |
| CO2 Control Resolution | 0.1% | |
| Humidification Type | Water tank for natural evaporation | |
| Sterilization Type | UV lamp for air jacket | |
| Ambient Temp. & Humidity | 18-30 suggest 25+ 2°C: relative humidity < 80% | |
| Caster | Caster Wheels | |
| Consumption | 350W 600W 875W |
650W 1000W |
| Power Supply | Ac110/220V0 V ± 10%, 50/60HZ | |
