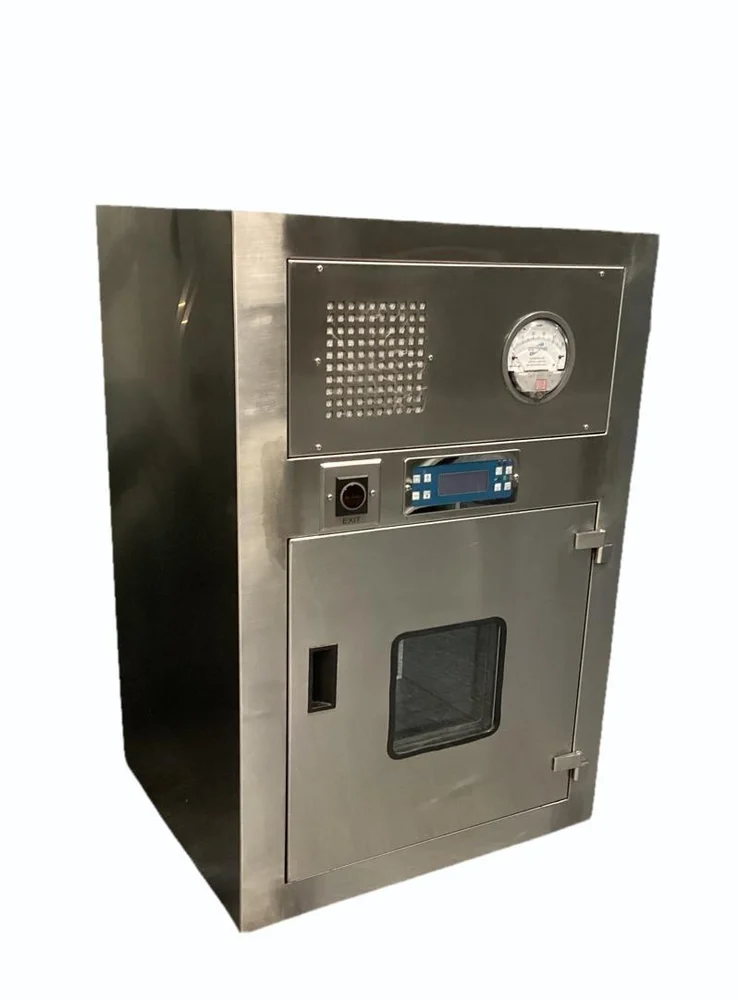

Dynamic Pass Box
- Complete SS 304 Grade stainless steel construction ensuring corrosion resistance and hygienic performance.
- Seamless internal finish designed to prevent cross-contamination and maintain a sterile transfer environment.
- Double-walled doors with glass view panels for safe material monitoring.
- Electromagnetic interlocking system ensures that only one door can be opened at a time.
- Precisely calibrated mechanical + electromagnetic interlocking mechanism for fail-safe operation.
- Door position sensor with audio buzzer indication for operational alerts.
- Equipped with Pre-Filter for initial dust particle removal.
- HEPA Filter (99.97% efficiency at 0.3 micron) for sterile air filtration.
- High-efficiency blower unit for laminar airflow circulation.
- Integrated UV Lamp for internal chamber sterilization.
- Magnetic Differential Pressure Gauge provided to monitor filter pressure drop.
- Door switch with buzzer alarm for safe operation.
- Designed to ensure contamination-free material transfer between clean and controlled areas.
| SIZE | 600X600X600mm |
|---|---|
| Power Supply | 230 V + 10 V 50Hz |
| SINGLE PHASE | |
