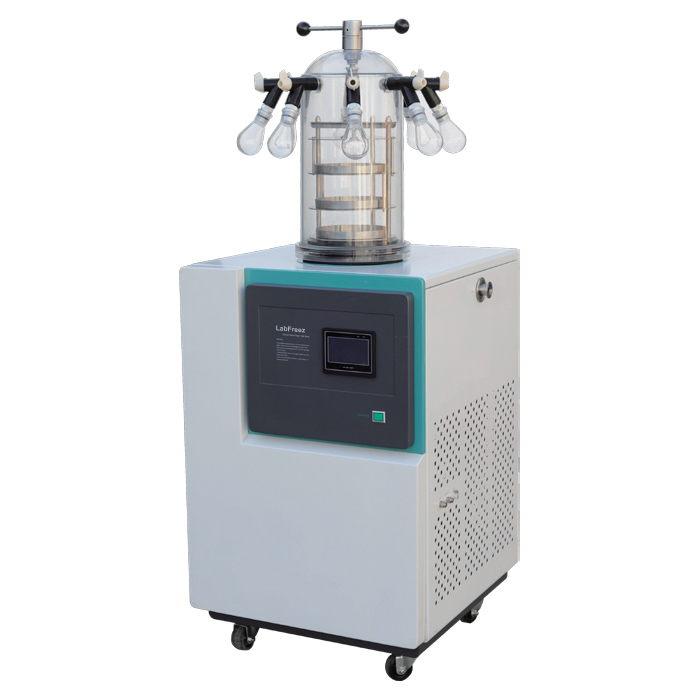

Freezer Dryer (LYOPHILIZER)
A Lyophilizer, also known as a Freezer Dryer, is a laboratory instrument used to preserve biological materials, pharmaceuticals, and chemical substances by removing water through the process of sublimation. In this method, the material is first frozen and then dried under reduced pressure, allowing ice to convert directly into vapor without passing through the liquid phase. Lyophilization helps maintain the structure, activity, and stability of heat-sensitive substances, making the lyophilizer an essential tool in research laboratories, pharmaceutical industries, and medical applications.
FEATURES
| Features | Details |
|---|---|
| 3 to 15 Liters ice capacities | -40°C or -80 temperature |
| CFC refrigeration system | Precise vacuum control |
| Corrosion resistant construction | Audio visual alarm optional |
| Digital PID controller | Simple to install and operate |
| Wide range of accessories are available | Single or two stages cooling system |
| Front Loading (Tray Type) | Top Loading (Vacuum Prove) |
SPECIFICATION
| Specification | TAI-LY-811-3 | TAI-LY-811-5 | TAI-LY-811-8 | TAI-LY-811-10 | TAI-LY-811-15 |
|---|---|---|---|---|---|
| Max. Ice Capacity | 3L | 5L | 8L | 10L | 15L |
| Ice Condenser Performance | 2L/24Hr | 3.5L/24Hr | 5.5L/24Hr | 7.5L/24Hr | 10L/24Hr |
| Tray | 2 | 2 | 3 | 4 | 5 |
| Cold Trap Temperature | -40°C or below (-80°C Optional) | ||||
| Temperature Sensor | PT-100 | ||||
| Controls | Refrigeration ON/OFF, Vacuum ON/OFF | ||||
| Controller | PID Controller / PLC+HMI Optional | ||||
| Refrigeration System | HCFC/CFC Free, -40°C (-86°C Optional) | ||||
| Compressor | Hermetically Sealed | ||||
| Defrost | Hot Gas | ||||
| Pressure Control | Automatic or Manual | ||||
| Drain Connection | Side Mounted | ||||
| MOC (Material of Construction) | Exterior - Powder Coated MS; Exterior Top - SS 304; Drying Chamber - SS 304 or SS 316; Cold Trap Chamber - SS 304 or SS 316; Lids - Acrylic | ||||
