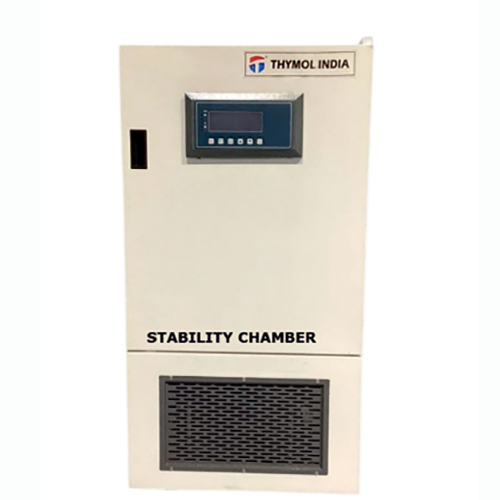

Stability Chamber
A Stability Chamber is a controlled environmental chamber designed to provide precise temperature, humidity, and sometimes light conditions for testing the stability of products over time. It is widely used in pharmaceutical, food, cosmetic, and chemical industries to evaluate how products respond to various environmental conditions and to determine their shelf life, efficacy, and safety. Stability chambers ensure accurate and reproducible results by maintaining uniform conditions, making them essential tools for quality control, research, and regulatory compliance.
- Double walled with PUF insulation.
- SS 304 interior and exterior, either SS 304 or Mild Steel.
- Stainless Steel trays.
- Full-length inner glass door and metal door with gasket and lock on the outside.
- Internal LED lights.
- Forced air circulation for uniform temperature.
- PU wheels for easy movement.
- U-shaped SS tubular heaters.
- Cooling achieved through a thermoelectric module based on the principle of Peltier Technology.
- Complete operations driven through PLC with data logging capacity up to 1000 readings.
- High-speed Ethernet-based communication.
- All operations through a single 7-color touchscreen.
- High-quality imported T/RH combo sensor with 4–20 mA output.
- Safety devices: Low and high temperature cut-off.
- Settable thermostats.
- Audio/visual alarms for deviations.
- Power supply: 230 volts, 50 Hz main supply. Also available with 60 Hz cycle.
Specification
| Specification | Details |
|---|---|
| Temperature Range | 20 to 60°C |
| Temperature Accuracy | ±5°C |
| Temperature Uniformity | ±1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ±2% RH |
| Humidity Uniformity | ±3% RH |
OPTIONAL
- HMI Control System
- Complies with 21 CFR
- Thermal Printer
- USB Port
- Construction: All SS 304
| Model | Capacity | No. of Trays | |
|---|---|---|---|
| Cu. Ft. | Liter | ||
| TAI-812-16 | 16 | 430 | 4 |
| TAI-812-26 | 26 | 735 | 5 |
| TAI-812-34 | 34 | 1000 | 5 |
| TAI-812-54 | 54 | 1500 | 10 |
| TAI-812-71 | 71 | 2000 | 10 |
