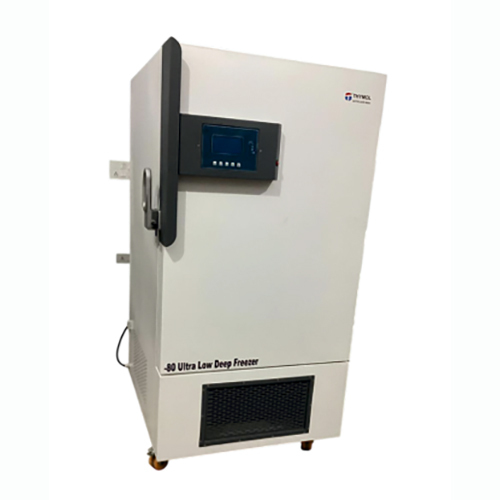

Deep Freezer
A THYMOL’S Deep Freezer is a low-temperature refrigeration unit designed to store materials at temperatures much lower than standard refrigerators, typically ranging from -20°C to 40°C (and lower in special models). It ensures long-term preservation by slowing biological and chemical activity. Deep freezers are built with high-grade insulation, efficient compressors, and precise temperature control for reliable, continuous operation
Technical Details
- Inner Chamber: High-grade SS 304, non-corrosive and non-magnetic for long service life
- Outer Body: Powder coated with bacteria-resistant film
- Door: Powder-coated with high-quality silicon rubber gasket for airtight sealing
- Insulation: Thick CFC-free polyurethane PUF/foam insulation to minimize thermal losses
- Casters: Heavy-duty, lockable castor wheels for safe mobility
- Locking System: Smart locking mechanism for enhanced safety and security
- Storage Type: Suitable for general laboratory storage
- Cooling Compressor: ISI-marked, CFC-free compressor for fast and uniform cooling
- Temperature Range: 10°C Up to -20°C/30°C-40°C (adjustable)
- Temperature Accuracy: ±0.5°C or better
- Hot Line Across Door Assembly: Prevents frost formation
Salient Features
- Microprocessor-based PID Digital Temperature Control
- LCD/LED Digital Display
- Audio & Visual Alarms
- Environment-friendly CFC-Free Cooling System
- Low Maintenance & Energy Efficient Operation
- Automatic Internal Illumination
- Smart Handle with LED Door Open/Close Indication
Optional
- HMI Control System
- Thermal Printer
- USB Port
- Complies with 21 CFR
- Battery Backup
| Inner Dimension in mm | Outer Dimension in mm | No. of Drawers & Tray | Capacity |
|---|---|---|---|
| 530x410x850 | 680x610x1500 | 3 | 200 L |
| 550x630x1050 | 700x710x1690 | 4 | 350 L |
| 670x650x1160 | 820x850x1820 | 4 | 450 L |
| 720x7000x1250 | 650x810x1410 | 5 | 550 L |
| 750x650x1050 | 870x900x1910 | 5 | 650 L |
| 820x780x1510 | 970x980x2180 | 5 | 1000 L |
