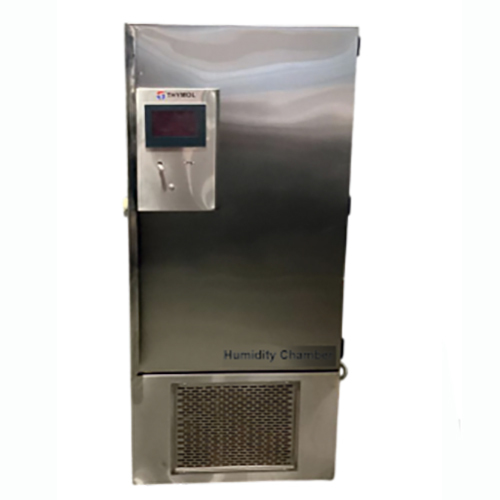

Humidity Chamber
The Thymol Humidity Chamber is a precision-engineered environmental testing system designed to accurately simulate controlled temperature and relative humidity conditions for testing, conditioning, and evaluation of products and materials under defined climatic environments. It delivers stable and uniform temperature-humidity control to effectively assess the impact of heat and moisture on samples over a specified duration. + Thymol Humidity Chambers are widely used in pharmaceutical, biotechnology, electronics, food, packaging, and research laboratories for stability studies, quality control, and product validation. Built with reliable components and precise control systems, the chamber ensures repeatable and consistent test conditions, making it suitable for both routine testing and long-term stability applications.
CONSTRUCTION
- Inner Chamber: Made of high-grade SS 304 stainless steel sheet for corrosion resistance and long service life.
- Outer Body: Fabricated from high-quality galvanized steel sheet, finished with long-lasting stove-enamel coating for durability and aesthetic appeal.
- Insulation: 100 mm thick high-density PUF (polyurethane foam) insulation ensures excellent thermal stability and energy efficiency.
- Galvanized steel door fitted with a neoprene rubber gasket for airtight sealing with Secure locking mechanism for operational safety.
- Integrated fluorescent illumination system with diffused light panels positioned on both sides of the chamber, suitable for photoperiodic testing and experiments.
- Refrigeration Unit: CFC-free cooling system using ISI-marked compressors ensuring reliable and efficient performance.
- Adjustable SS 304 stainless-steel shelves for flexible sample placement.
- Heavy-duty movable and lockable castor wheels for easy positioning and stability.
- Power Supply: Operates on 220-230 V AC, single phase.
OPTIONAL
- A. HMI Control System
- B. Complies with 21 CFR
- C. Thermal Printer
- D. USB Port
- E. Construction: All SS 304
TECHNICAL PARAMETER
- Temperature Range: -5°C to 60°C
- Humidity Range: 5% above ambient from 40% to 95% RH at cool temperatures
- Temperature Accuracy: ±1°C or better
- Humidity Accuracy: ±3% RH
SILENT FEATURES
- Microprocessor-Based Digital Controller with precise temperature regulation
- PT-100 Temperature Sensor for accurate and reliable sensing
- LCD / LED Display for clear digital indication of temperature and humidity
- Access Ports: Two side ports and one rear port provided for easy calibration and validation
- Audio & Visual Alarms
- Low Water Level Cut-Off system
- Forced Air Circulation Fan
- Steam Generation Tank
| MODEL | CAPACITY | NO. OF SHELVES | VOLUME |
|---|---|---|---|
| ΤΑΙ-814-4 | 112 liters | 2 | 4 Cu. ft |
| ΤΑΙ-814-6 | 171 liters | 2 | 6 Cu. ft |
| ΤΑΙ-814-10 | 285 liters | 3 | 10 Cu. ft |
| ΤΑΙ-814-12 | 340 liters | 4 | 12 Cu. ft |
| ΤΑΙ-814-16 | 450 liters | 5 | 16 Cu. ft |
| ΤΑΙ-814-20 | 560 liters | 6 | 20 Cu. ft |
| ΤΑΙ-814-28 | 800 liters | 6 | 28 Cu. ft |
| ΤΑΙ-814-35 | 1000 liters | 7 | 35 Cu. ft |
