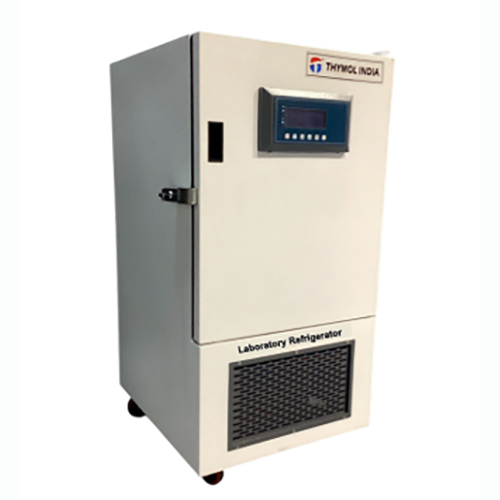

Laboratory Refrigerator
A laboratory refrigerator is a specialized cooling device used to store chemicals, biological samples, reagents, and other temperature-sensitive materials under controlled conditions. It maintains a stable low temperature to preserve sample integrity, prevent contamination, and slow down chemical or biological degradation. Unlike domestic refrigerators, laboratory refrigerators are designed to meet safety standards and provide precise temperature control required in scientific and medical laboratories. They are widely used in research laboratories, hospitals, pharmaceutical facilities, and educational institutions.
- Double-walled construction with PUF insulation.
- SS 304 interior and exterior, either SS 304 or mild steel.
- Stainless steel trays.
- Full-length inner glass door with magnetic gasket.
- Forced air circulation for uniform temperature.
- PU wheels for easy movement.
- CFC-free cooling system consisting of a hermetically sealed compressor coupled with an evaporation coil and condenser.
- Complete operations driven through a 10T-enabled controller with data logging capacity of up to 1,000 readings.
- High-speed Ethernet-based communication.
- All operations through a single 7-color touchscreen display.
- High-quality PT-100 temperature sensor.
- Safety devices: Low-temperature cut-off settable thermostats.
- Audio/visual alarms for deviations.
| Specification | Details |
|---|---|
| Temperature Range | 2°C to 8°C |
| Temperature Accuracy | ±0.5°C |
| Temperature Uniformity | ±1°C |
| Optional | Details |
|---|---|
| A | Standby Cooling System with Auto Switch Over (430 Litre & Above) |
| B | HMI Control System |
| C | Thermal Printer |
| D | USB Port |
| E | Construction: All SS 304 |
| CAPACITY | |||
|---|---|---|---|
| Model | Cu. Ft. | Liter | No. of Trays |
| TAI-807-A | 7 | 200 | 3 |
| TAI-807-B | 16 | 430 | 4 |
| TAI-807-C | 26 | 735 | 5 |
| TAI-807-D | 34 | 1000 | 5 |
| TAI-807-E | 54 | 1500 | 10 |
| TAI-807-F | 71 | 2000 | 10 |
