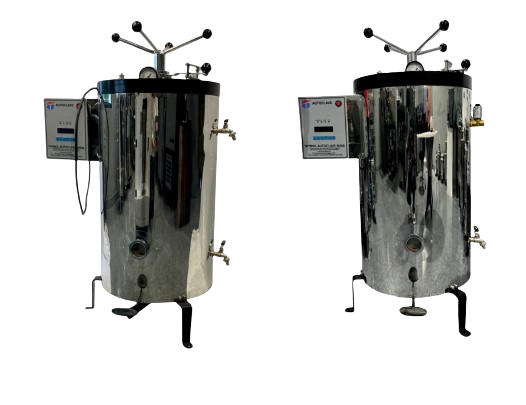

Double Walled Radial Locking SS Lining
- Inner Chamber, Outer Chamber & Support Ring are fully made of Stainless Steel/Mild Steel.
- Heater, cover stand & carrier/bucket are made of Stainless Steel.
- Lid made of thick machined stainless steel plate.
- Radial Locking lid ensures user safety & safe locking.
- Lid is fitted with pressure gauge, spring loaded safety valve,
double safety valve, manual exhaust valve as a safety device. - Drain valve facilitates easy cleaning of the chamber.
- Moulded joint less Silicon/Elastomeric/Neoprene Gasket.
- All internal joints are fibre laser welded, ground & polished
to give crevice free internals. - Miniature circuit breaker for mains ON/OFF with safety of control panel.
- Industrial grade energy efficient heaters reduce power bills drastically.
TECHNICAL SPECIFICATION
OPTIONAL
SALIENT FEATURES
SEMI AUTOMATIC
FULLY AUTOMATIC
TECHNICAL SPECIFICATION
- WORKING PRESSURE : 15-25 PSI
- WORKING TEMPERATURE : 121-125°C
- POWER SUPPLY : 220x230V AC, 50/60 Hz
- PRESSURE VESSEL : SS 304 Grade
- HYDRAULIC TESTING : 40 PSI
- TOP LID : SS 304 Grade Stainless Steel
- EXTERNAL WALL : SS 202 Grade
OPTIONAL
Thermal Printer
Data logger, USB Port, RS 232 Port
Pressure Range : 15-35 PSI
Temperature Range : 121-135 deg C
HMI Based Touch Screen controller
21 CFR Software
| DIMENSION INCH | DIMENSION (MM) | CAPACITY | LOAD |
|---|---|---|---|
| 10×18 | 250×450 | 22 Liter | 1.5 KW |
| 12×22 | 300×550 | 40 Liter | 2 KW |
| 14×22 | 350×550 | 50 Liter | 3 KW |
| 16×24 | 400×600 | 78 Liter | 4 KW |
| 18×24 | 450×600 | 98 Liter | 4 KW |
| 18×30 | 450×750 | 120 Liter | 4 KW |
| 22×30 | 550×750 | 180 Liter | 6 KW |
SALIENT FEATURES
- Water Level Indicator
- Stainless Steel Basket
- Vacuum Breaker
SEMI AUTOMATIC
- Automatic pressure control switch
- Automatic low water cut off system
- Microprocessor based digital temperature
Indicator cum controller with set value and
process valve/digital timer
FULLY AUTOMATIC
- Automatic low water cut off system
- Automatic Pressure control switch
- Control: ON/OFF T.P
- Input: PT-100 Pressure Sensor for chamber
- Purging Range: User settable
- Post sterilization: Drying Time: User settable
- Buzzer: low / Alarm Process End
- Pressure Display
- Sterilization cycle process inbuilt
- Boiler control : User Settable
