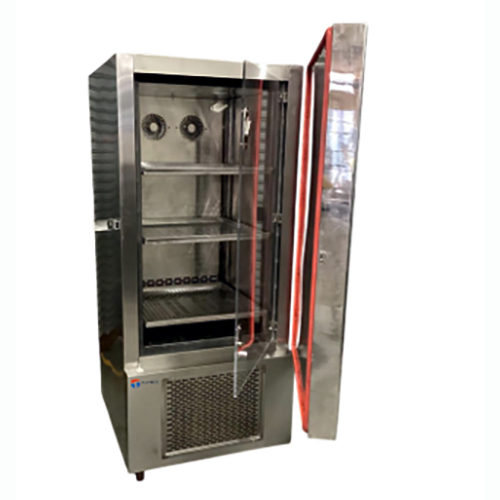

Plant Growth Chamber
The Plant Growth Chamber (PG-Series) is specially designed for advanced botanical and agricultural research applications, including plant growth studies, plant pathology, plant tissue culture, and genetic research. Engineered with a robust and modern design, this chamber meets the challenging requirements of controlled environmental testing in research laboratories, agricultural institutes, and quality control facilities. It provides precise control over temperature, humidity, and illumination, ensuring accurate and repeatable experimental results. The chamber is environmentally friendly, weather resistant, and constructed using corrosion-free materials. High-quality insulationensures maximum thermal efficiency and long operational life.
CONSTRUCTION
- Inner chamber made of thick-gauge stainless steel (SS 304).
- Exterior body made of corrosion-resistant powder-coated GI sheet.
- 70 mm high-density PUF insulation for thermal efficiency.
- Laser-welded construction for enhanced durability.
- Double-door design with an inner transparent viewing door and an outer insulated door with easy-lock latches, ensuring clear observation while maintaining chamber stability during access.
- Capacitive humidity sensors for precise regulation.
- Stainless steel humidity boiler tank with immersion heater.
- Heavy-duty caster wheels with brakes for easy mobility and secure positioning.
- Automatic water filling system.
- Power Supply: 220 V, 50 Hz.
Control System
- Temperature Range (Lights OFF): 5°C–60°C
- Temperature Range (Lights ON): 10°C–60°C
- Temperature Accuracy: ±1%
- Humidity Range: 50%–90% RH
- Humidity Accuracy: ±3%
- Controller: Digital PID with SV & PV
- Illumination: 2-Side / 3-Side LED
- Digital Timer
- Shelves: SS / Chrome Plated (Adjustable)
- Safety: Audio, Door Open & Visual Alarm
OPTIONAL
- A HMI Control System
- Complies with 21 CFR
- Thermal Printer
- USB Port
- Construction: All SS 304
| MODEL | CAPACITY | No. of Trays | |
|---|---|---|---|
| CuFt. | Liter | ||
| ΤΑΙ-813-16 | 16 | 430 | 4 |
| ΤΑΙ-813-26 | 26 | 735 | 5 |
| ΤΑΙ-813-34 | 34 | 1000 | 5 |
| ΤΑΙ-813-54 | 54 | 1500 | 10 |
| ΤΑΙ-813-71 | 71 | 2000 | 10 |
