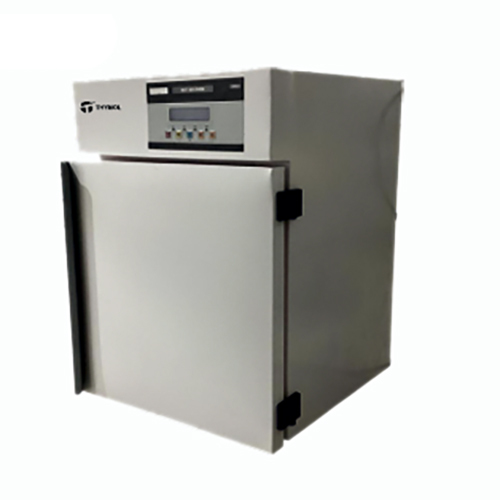

Hot Air Oven
Hot Air Oven is a high-performance laboratory sterilization and drying equipment, precisely engineered to deliver uniform temperature control, operational safety, and long-term reliability. It operates on the principle of forced hot air circulation, ensuring efficient moisture removal and effective sterilization of laboratory glassware, instruments, and heat-resistant materials.
Designed with advanced temperature control, precision timing, and integrated safety systems, Hot Air Oven provides consistent, repeatable, and validated results, making it an essential solution for research laboratories, pharmaceutical units, healthcare facilities, and industrial applications where contamination-free processing is critical.
CONSTRUCTION DETAILS
- Inner Chamber: SS 304 stainless steel
- Outer Body: GI powder-coated mild steel (optional Stainless steel SS304)
- Robust Double-Walled Construction for enhanced insulation and energy efficiency
- Insulation: High-density glass wool for minimal heat loss
- Door: Fully insulated solid door with heavy-duty locking clamp With Heat-resistant synthetic rubber gasket
- Uniform Heat Distribution through motor-driven forced air circulation
- High Thermal Stability for consistent and repeatable sterilization cycles
- Removable Stainless-Steel Wire-Mesh Shelves for flexible loading
- Low Noise Operation with aerodynamically designed airflow
- Power Supply: 220-230 V AC, Single Phase
TECHNICAL PARAMETERS
- Controller: Feather-touch microprocessor based controller
- Display: Dual SV & PV digital display
- Temperature Sensor: PT 100 Platinum Resistance Thermometer
- Air Circulation Fan: Motor driven blower assembly
- Airflow Pattern: Horizontal aerodynamic circulation
- Safety System: Independent over temperature cut-off
- 3 heater Elements: Bottom, LHS & RHS
- Temperature Range: Ambient +5°C to 250°C (Optional up to 350°C)
- Temperature Accuracy: ±1°C
- Temperature Uniformity / Variation: ±5°C
OPTIONAL
- A HMI Control System
- B Thermal Printer
- C USB Port
- D Construction: All SS 304
| Size (Inches) | Size (mm) | Capacity (L) | Shelves |
|---|---|---|---|
| 12 × 12 × 12 | 300 × 300 × 300 | 28 | 2 |
| 14 × 14 × 14 | 350 × 350 × 350 | 45 | 2 |
| 16 × 16 × 16 | 400 × 400 × 400 | 65 | 2 |
| 18 × 18 × 18 | 450 × 450 × 450 | 95 | 2 |
| 24 × 24 × 24 | 600 × 600 × 600 | 224 | 3 |
| 36 × 24 × 18 | 900 × 600 × 450 | 252 | 3 |
| 36 × 24 × 24 | 900 × 600 × 600 | 336 | 3 |
| 36 × 36 × 36 | 900 × 900 × 900 | 720 | 3 |
