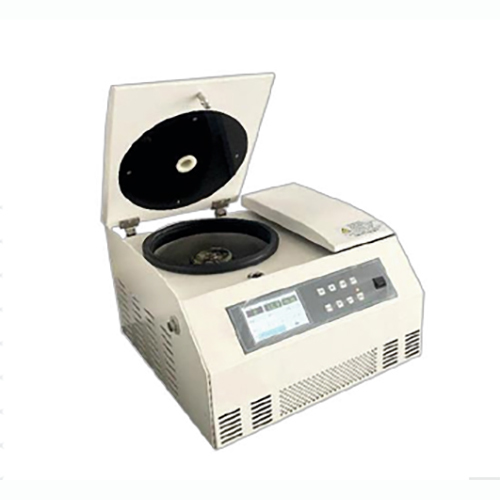

High Speed Refrigeated Centurifuge
A high-speed refrigerated centrifuge is an advanced laboratory instrument designed to separate components of a mixture based on their density under high centrifugal force while maintaining precise temperature control. By combining rapid rotational speeds with an integrated refrigeration system, this equipment prevents heat buildup during operation, thereby preserving the integrity of temperature-sensitive biological and chemical samples. High-speed refrigerated centrifuges are widely used in clinical diagnostics, biomedical research, pharmaceutical development, and molecular biology for applications such as cell fractionation, protein isolation, and nucleic acid separation. Their accuracy, efficiency, and ability to protect samples make them essential tools in modern laboratory environments.
SALIENT FEATURES
- Brushless DC motor, Maintenance free; Microprocessor Control, can preset rotation speed, time, centrifuge force, temperature, speed level; Liquid crystal display; Two kinds of operation method, touch screen and key operation
- 10 preset programs and 10 speed levels, in order to be started and stopped quickly.
- Automatic balance device inside steel metal case, stainless vessel, electronic security lock to keep the centrifuge safe when running Temperature range: – 20 deg * C to 40 deg * C can be refrigerated quickly; and also has fault alarm function Temperature control Accuracy: plus/minus 1 deg * C
- Speed control accuracy: ±20rpm
- There are many specifications of rotors and adapters. Suitable for fields of scientific research, genetic engineering, biochemistry, etc.
| Technical Specification | Details |
|---|---|
| Model | ΤΑΙ-805 |
| Max Speed | 16000 r/min |
| Max RCF | 19040 x g |
| Time Range | 1~99min595 |
| Power Supply | AC220V 50Hz 5A |
| Dimension | 48x48x27.5 cm |
| Weight | 47 kg |
| Rotor No. | Capacity | Rotor Type | Speed (R/MIN) | RCF (×g) |
|---|---|---|---|---|
| 1 | 1.5/2 ml × 12 | Angle Rotor | 16000 | 17940 |
| 2 | 1.5/2 ml × 24 | Angle Rotor | 14000 | 17950 |
| 3 | 5 ml × 10 | Angle Rotor | 16000 | 17800 |
| 4 | 10 ml × 6 | Angle Rotor | 13000 | 14190 |
| 5 | 0.2 ml × 40 | Angle Rotor | 16000 | 19040 |
| 6 | 0.5 ml × 40 | Angle Rotor | 13000 | 17210 |
| 7 | 0.2 ml × 8 × 4 PCR | Rotor | 14000 | 13720 |
